Electronics

The TART Electronics consist of the motherboard, The 24 radio receivers on 6 radio modules, the correlator, the single-board-computer, the power-supply, associated co-ax cables and the enclosure.

TART Development Kit​

The electronics are available as a development kit, which consists of the current versions of the TART electronic components so the current development kit will change as the community develops new versions of the electronics. The development kit provides a quick way to get started with working on TART telescopes.

Development kits are available for purchase from the Electronics Research Foundation. To order a kit, contact Tim Molteno.

  • A fully assembled and tested kit (electronics including correlator, single board computer and antennas) costs ~EUR 3500, not including freight.
  • A flat-pack CNC machined antenna array mounting kit will also be made available.

Also required for a complete TART are the antennas and the array hardware

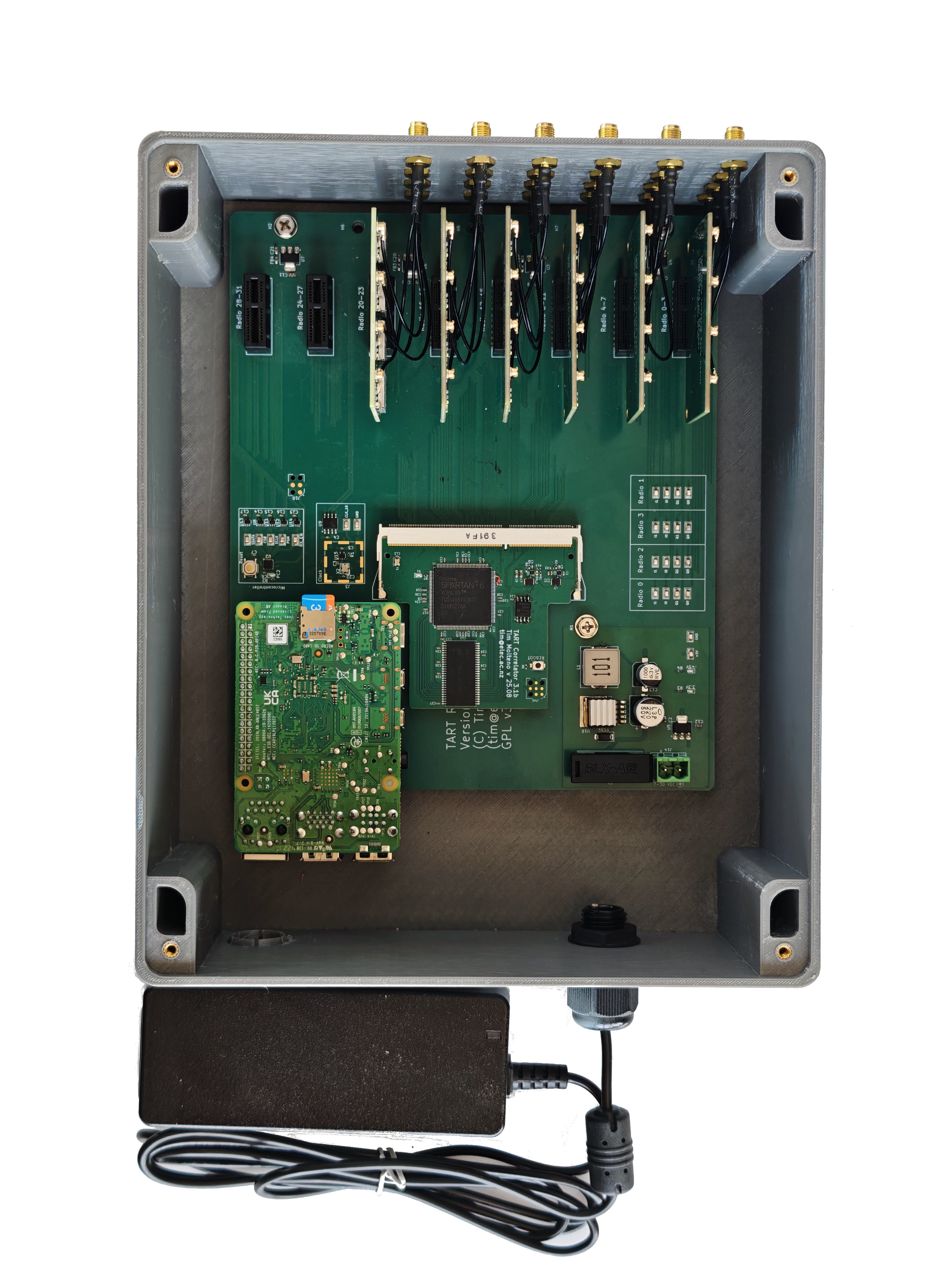

TART Electronics
A TART 2026 Development kit. The Development kit includes all the electronics required for a TART telescope.

TART Antennas and Ground Planes​

The TART antennas are typically standard GNSS antennas attached to a circular ground plane. The ground plane is circular with a diameter of 135mm, made from 1mm aluminium sheet. If you are developing your antenas locally, then the ground plane size and shape will depend on your choice of antenna design.

A set of 24 antennas and ground planes is also available. These can be purchased locally if required, and the ground planes can be laser-cut from aluminium sheet.
